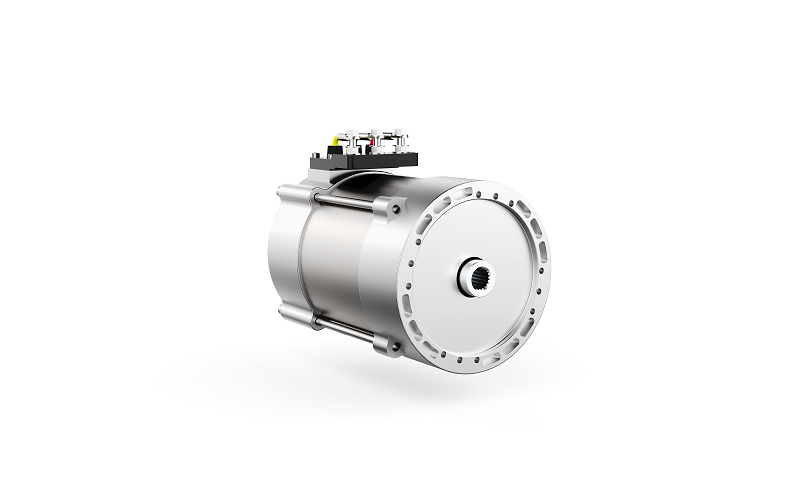

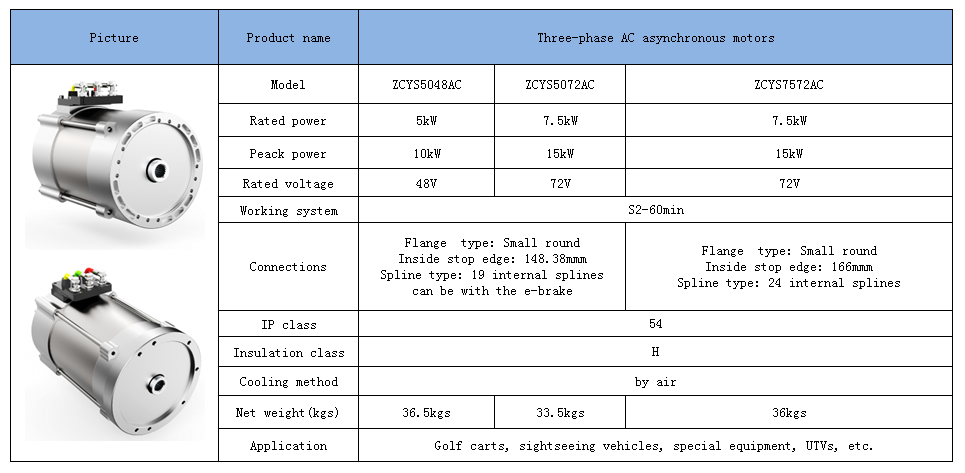

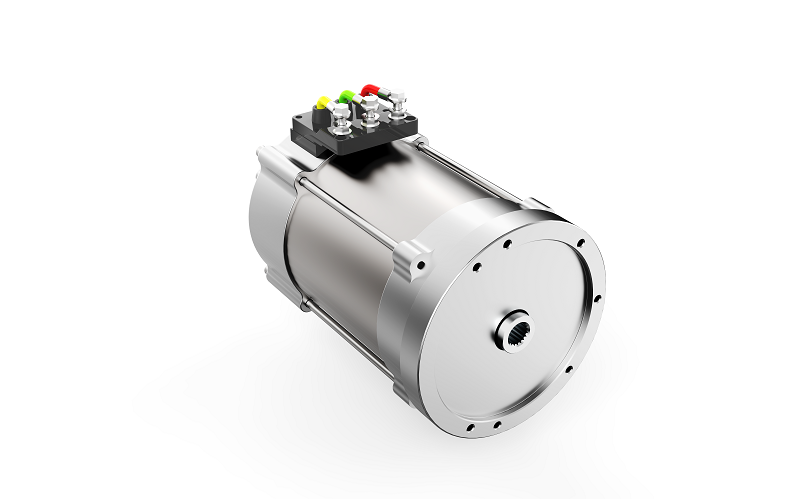

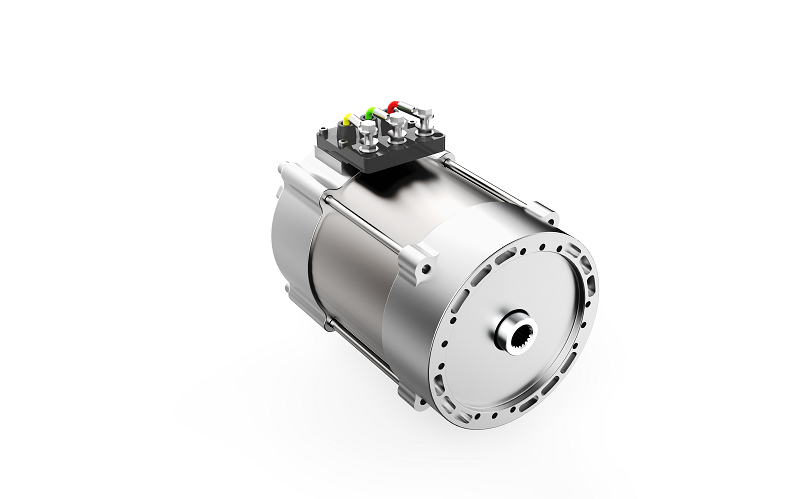

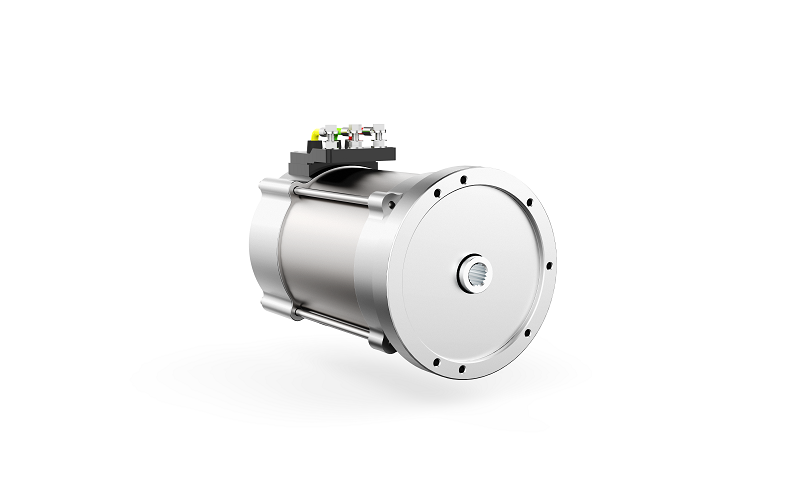

Model: ZCYS5048AC, ZCYS5072AC, ZCYS7572AC
Rated power: 5kW 7.5kW 7.5kW
Peack power: 10kW 15kW 15kW
Rated voltage: 48V 72V 72V
Working system: S2-60min
Connections Flange type: Small round; Inside stop edge: 148.38mmm/166mmm; Spline type: 19 internal splines can be with the e-brake/ 24 internal splines
IP class: 54
Insulation class: H
Cooling method: by air
Net weight(kgs): 36.5kgs 33.5kgs 36kgs
Application: Golf carts, sightseeing vehicles, special equipment, UTVs, etc.
