ZCYS170502—5KW

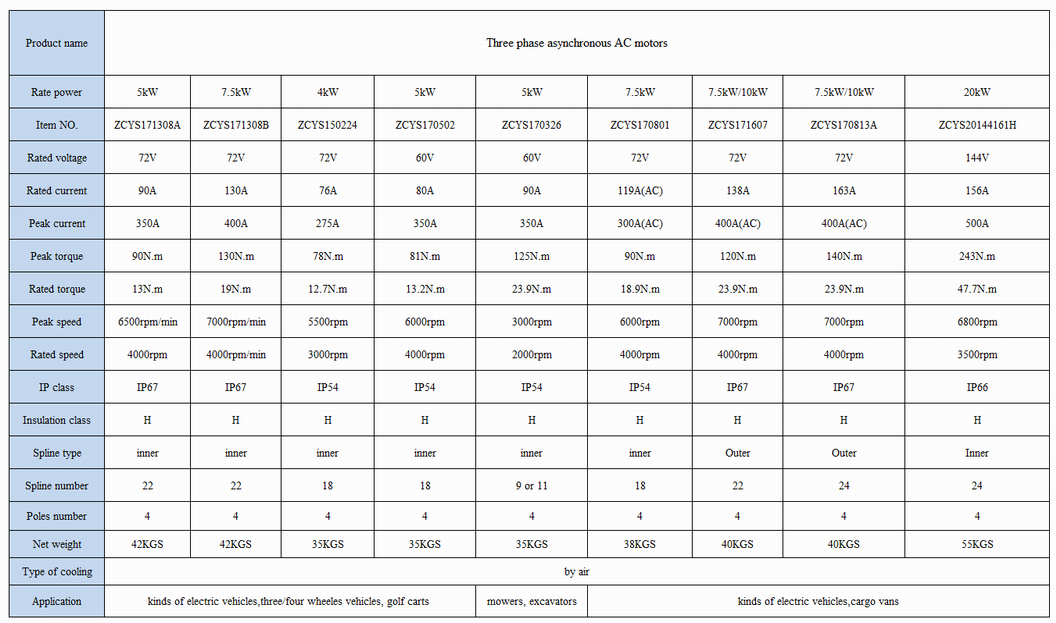

Item NO.: ZCYS171308A, ZCYS171308B, ZCYS150224, ZCYS170502, ZCYS170326, ZCYS170801, ZCYS171607, ZCYS170813A, ZCYS20144161H
Rate power: 5kW 7.5kW 4kW 5kW 5kW 7.5kW 7.5kW/10kW 7.5kW/10kW 20kW
Rated voltage: 72V 72V 72V 60V 60V 72V 72V 72V 144V
Rated current: 90A 130A 76A 80A 90A 119A(AC) 138A 163A 156A
Peak current: 350A 400A 275A 350A 350A 300A(AC) 400A(AC) 400A(AC) 500A
Peak torque: 90N.m 130N.m 78N.m 81N.m 125N.m 90N.m 120N.m 140N.m 243N.m
Rated torque: 13N.m 19N.m 12.7N.m 13.2N.m 23.9N.m 18.9N.m 23.9N.m 23.9N.m 47.7N.m
Peak speed: 6500rpm/min 7000rpm/min 5500rpm 6000rpm 3000rpm 6000rpm 7000rpm 7000rpm 6800rpm
Rated speed: 4000rpm 4000rpm/min 3000rpm 4000rpm 2000rpm 4000rpm 4000rpm 4000rpm 3500rpm
IP class: IP67 IP67 IP54 IP54 IP54 IP54 IP67 IP67 IP66
Insulation class: H
Spline type: inner/outer
Spline number: 22, 22, 18, 18, 9 or 11, 18, 22, 24, 24
Poles number: 4
Net weight: 42KGS 42KGS 35KGS 35KGS 35KGS 38KGS 40KGS 40KGS 55KGS
Type of cooling: by air
Application: kinds of electric vehicles,three/four wheeles vehicles, golf carts mowers, excavators kinds of electric vehicles,cargo vans
