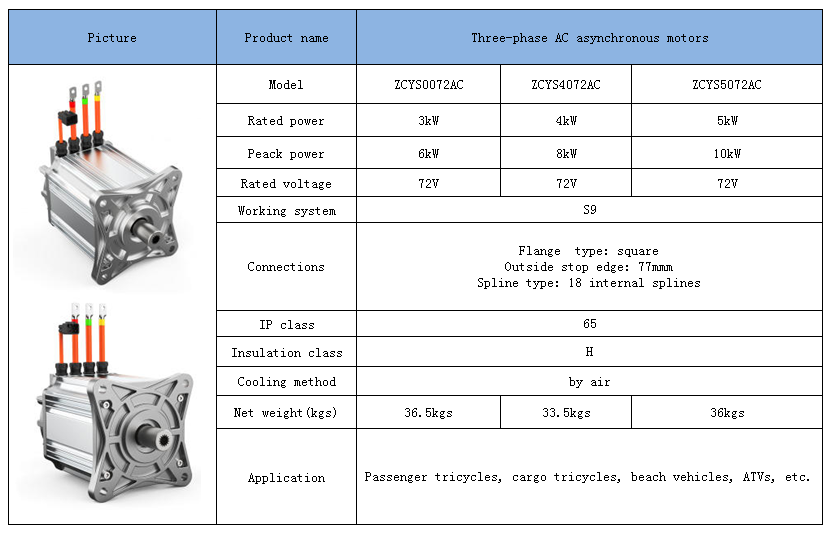

Model: ZCYS0072AC, ZCYS4072AC, ZCYS5072AC
Rated power: 3kW 4kW 5kW
Peack power: 6kW 8kW 10kW
Rated voltage: 72V 72V 72V
Working system: S9
Connections: Flange type: square; Outside stop edge: 77mmm; Spline type: 18 internal splines
IP class: 65
Insulation class: H
Cooling method: by air
Net weight(kgs): 36.5kgs 33.5kgs 36kgs
Application: Passenger tricycles, cargo tricycles, beach vehicles, ATVs, etc.
