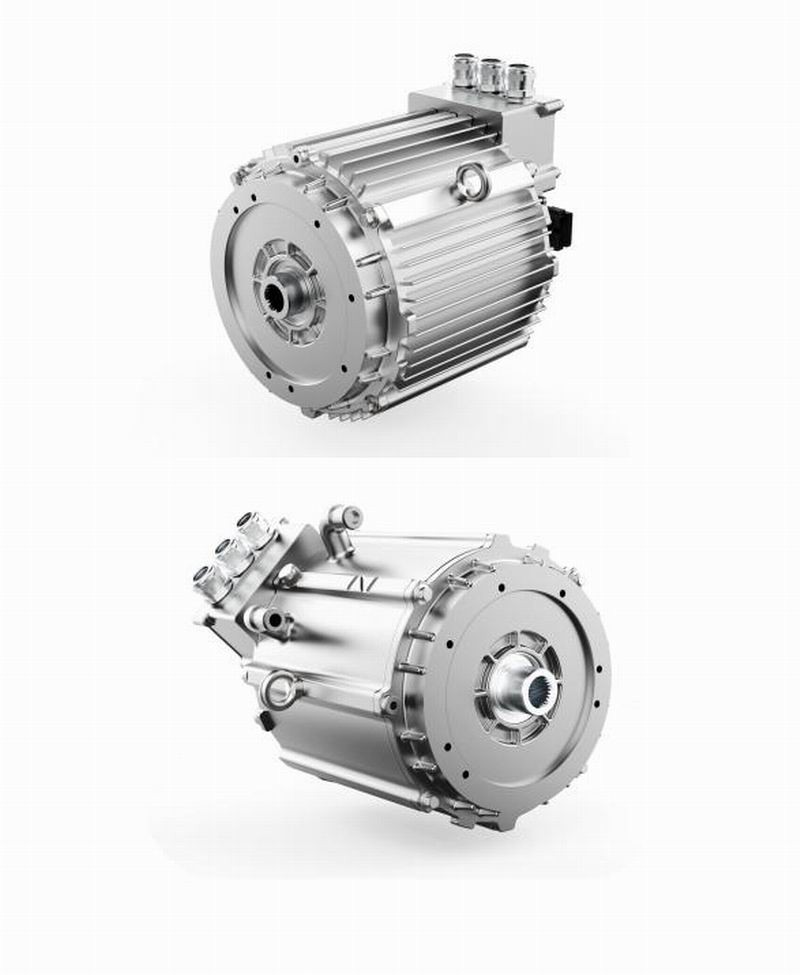

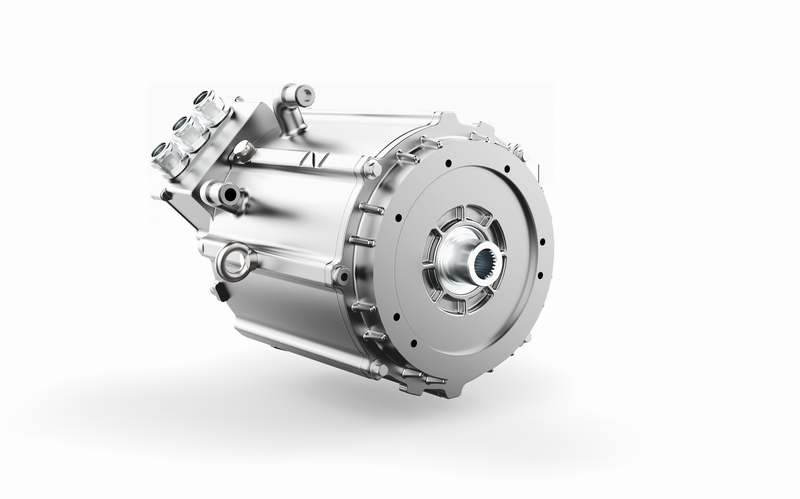

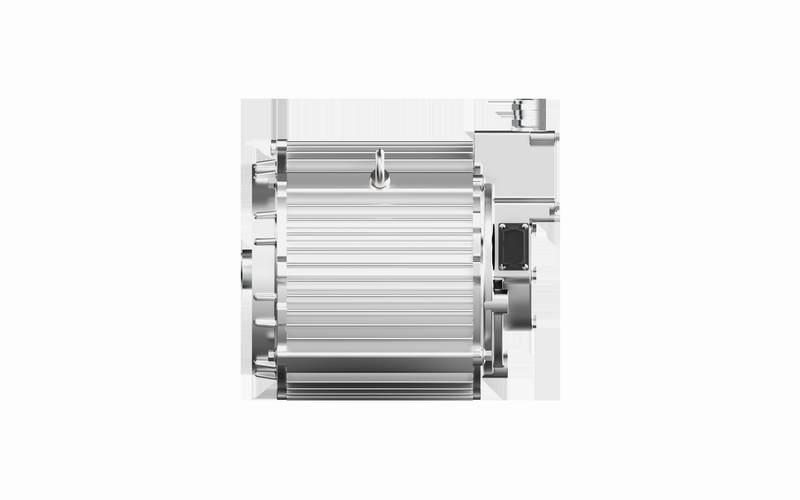

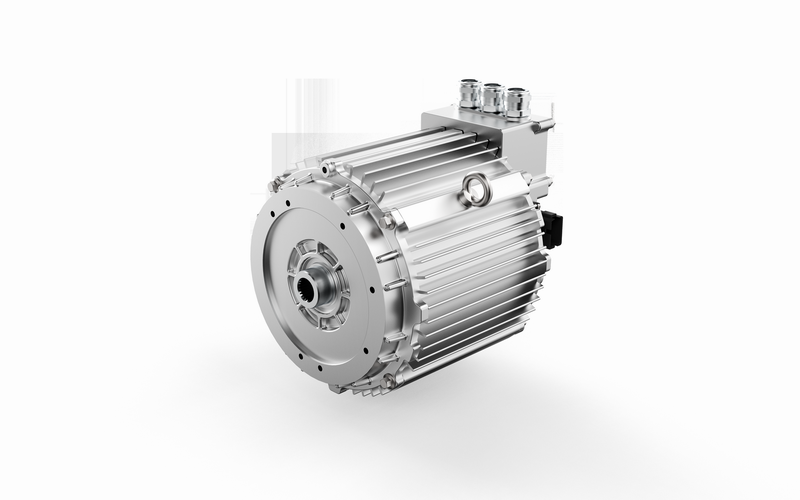

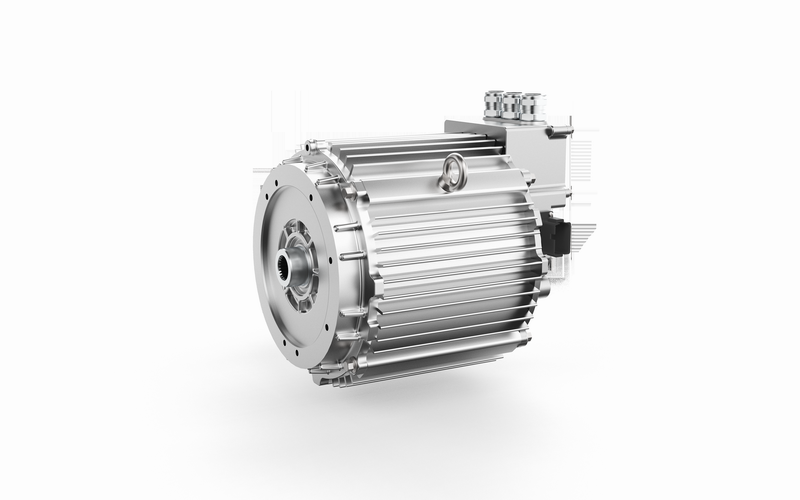

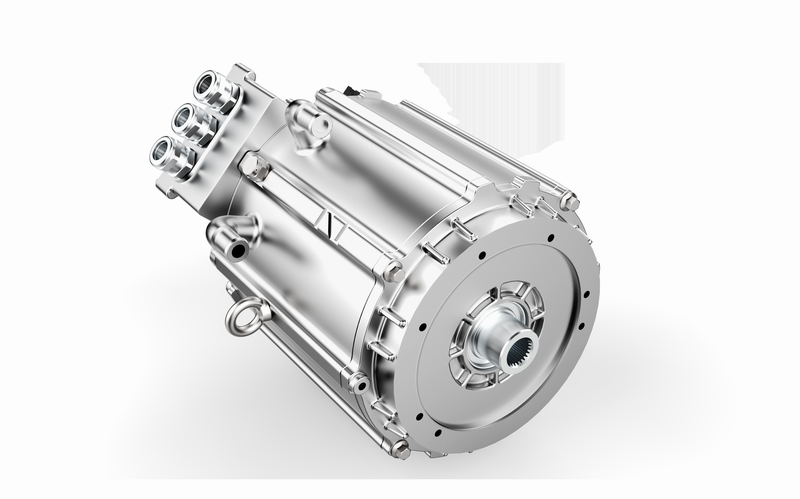

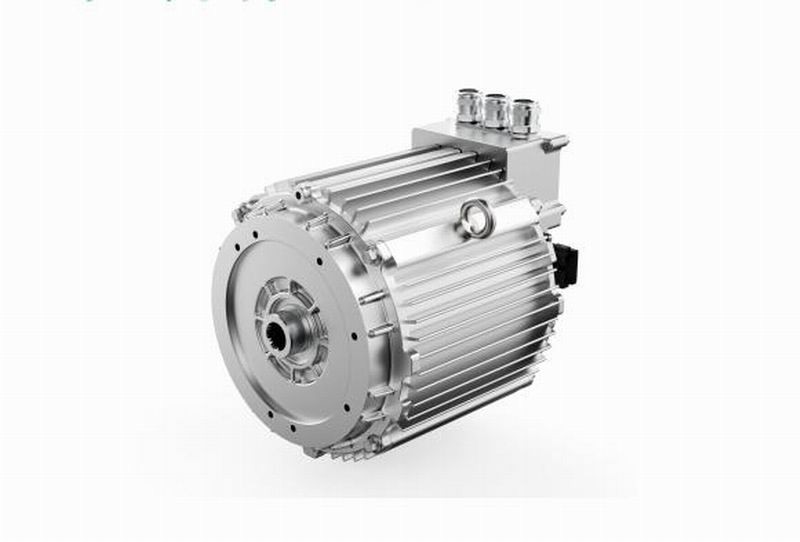

210 platform motor

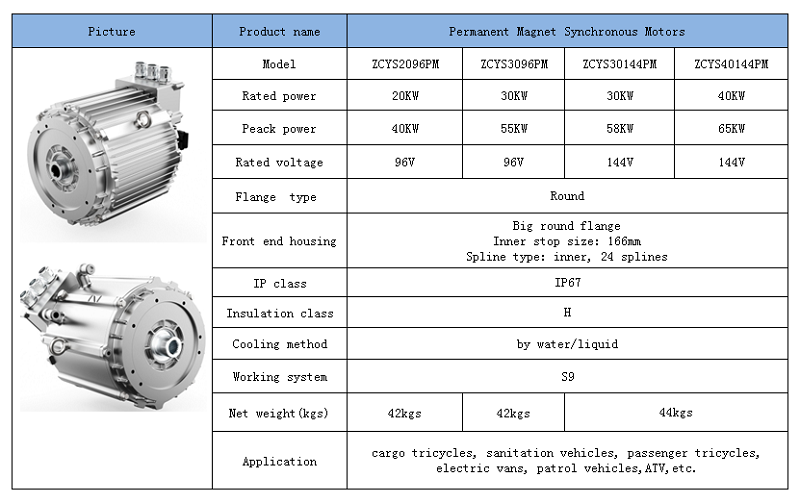

Model:
ZCYS2096PM, ZCYS3096PM, ZCYS30144PM, ZCYS40144PM
Rated power: 20KW 30KW 30KW 40KW
Peack power: 40KW 55KW 58KW 65KW
Rated voltage: 96V 96V 144V 144V
Flange type: Round
Front end housing: Big round flange Inner stop size: 166mm Spline type: inner, 24 splines
IP class: IP67
Insulation class: H
Cooling method: by water/liquid
Working system: S9
Net weight(kgs): 42kgs 42kgs 44kgs 44kgs
Application: cargo tricycles, sanitation vehicles, passenger tricycles, electric vans, patrol vehicles,ATV,etc.
