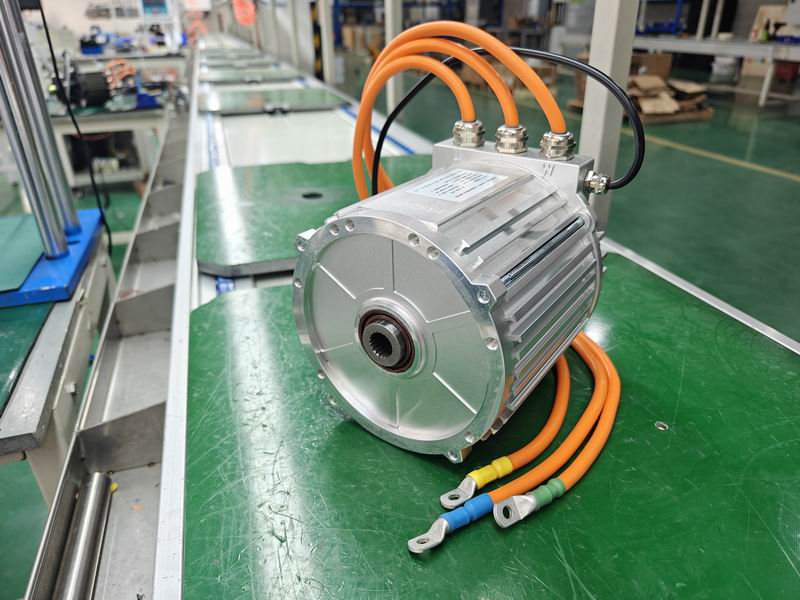

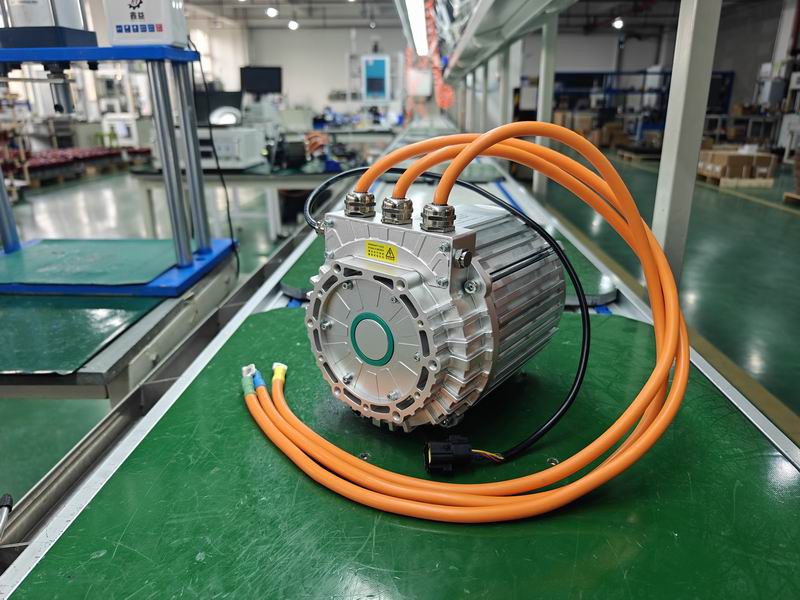

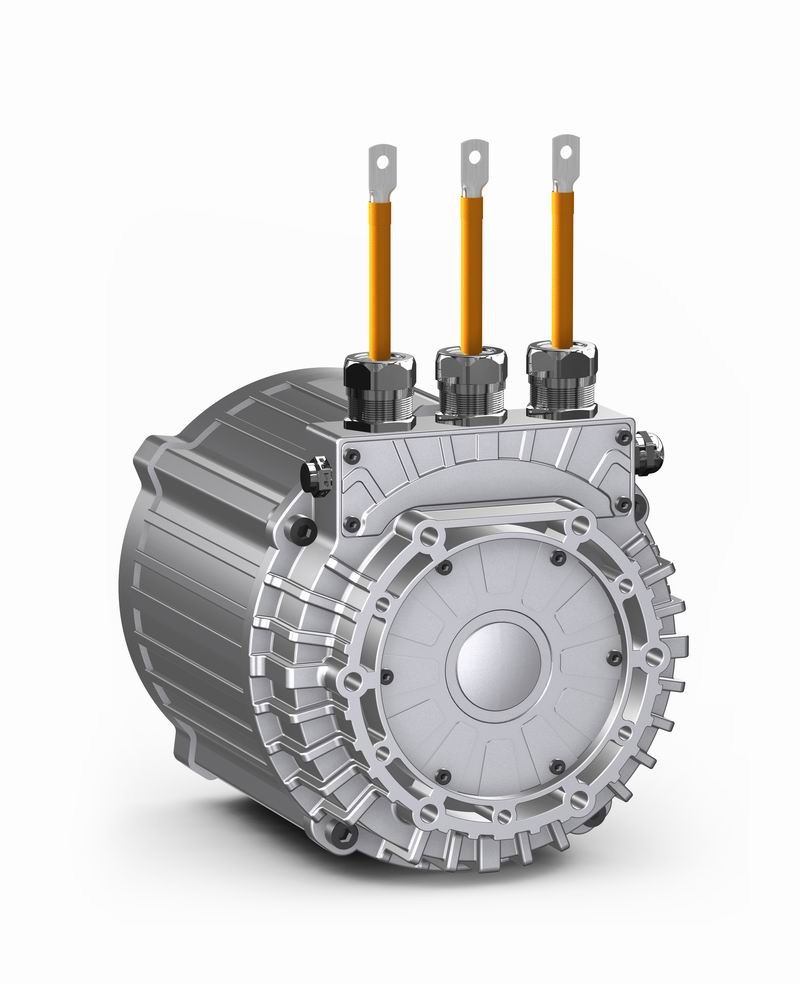

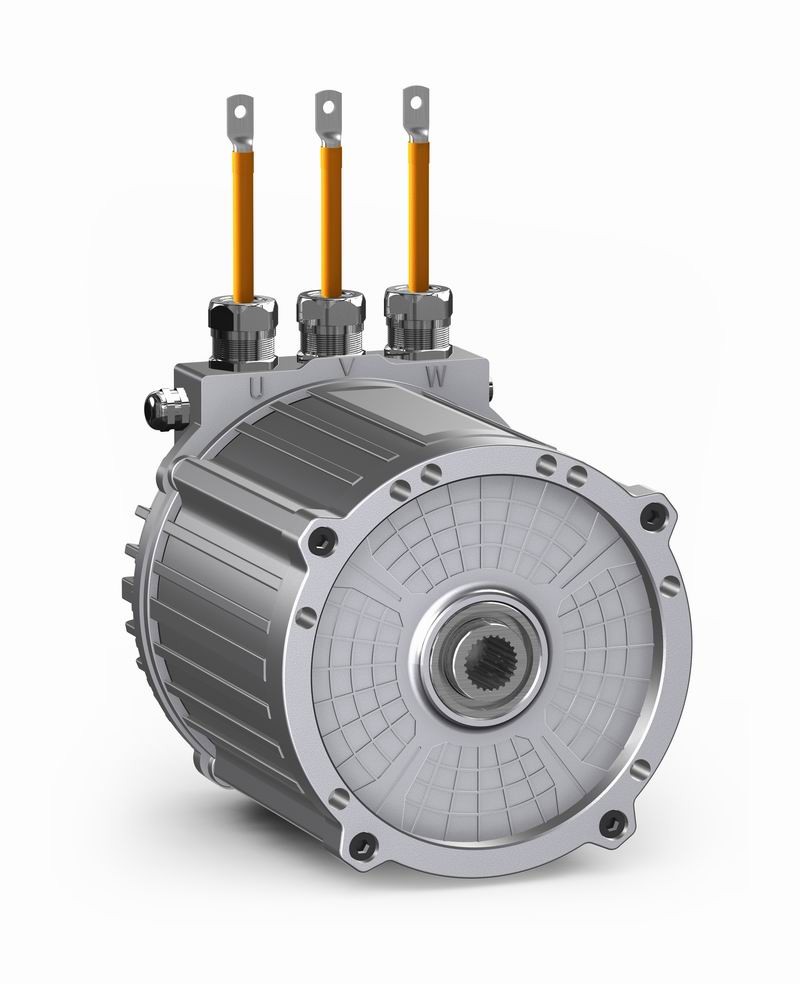

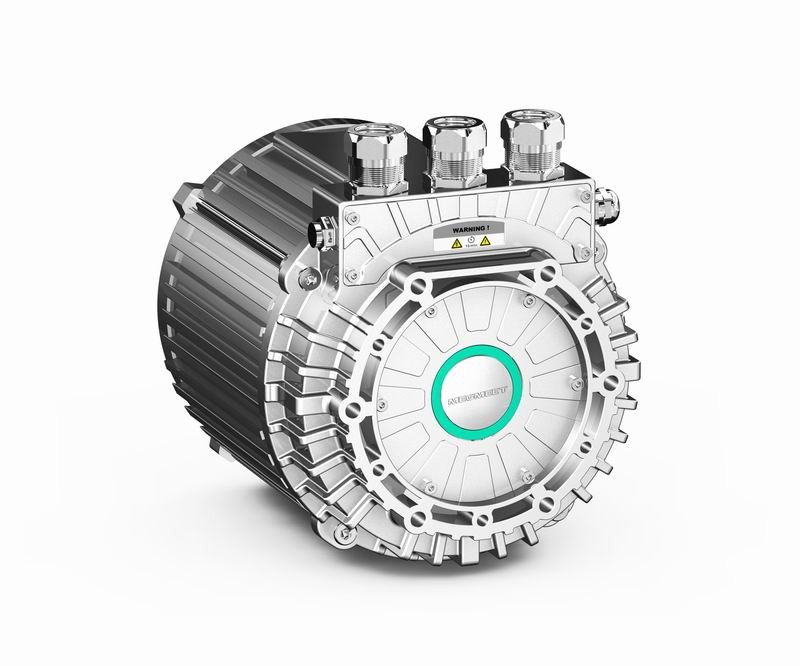

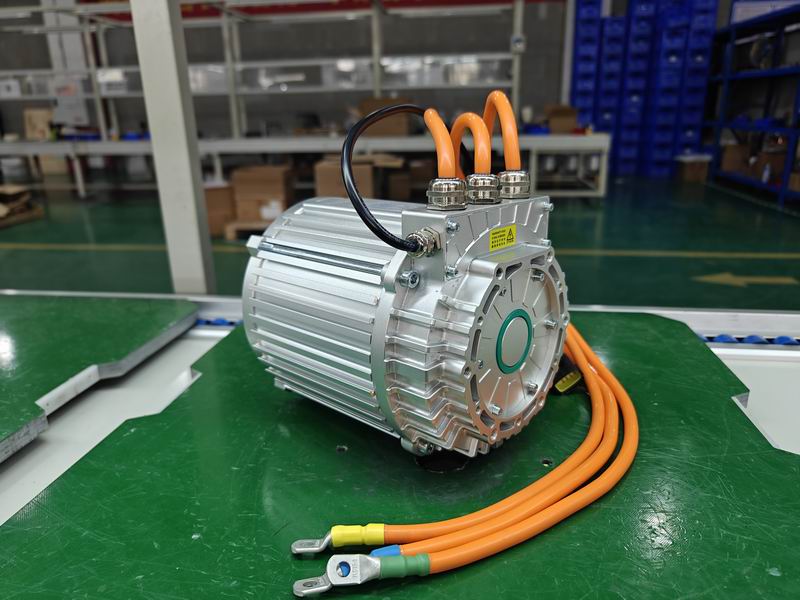

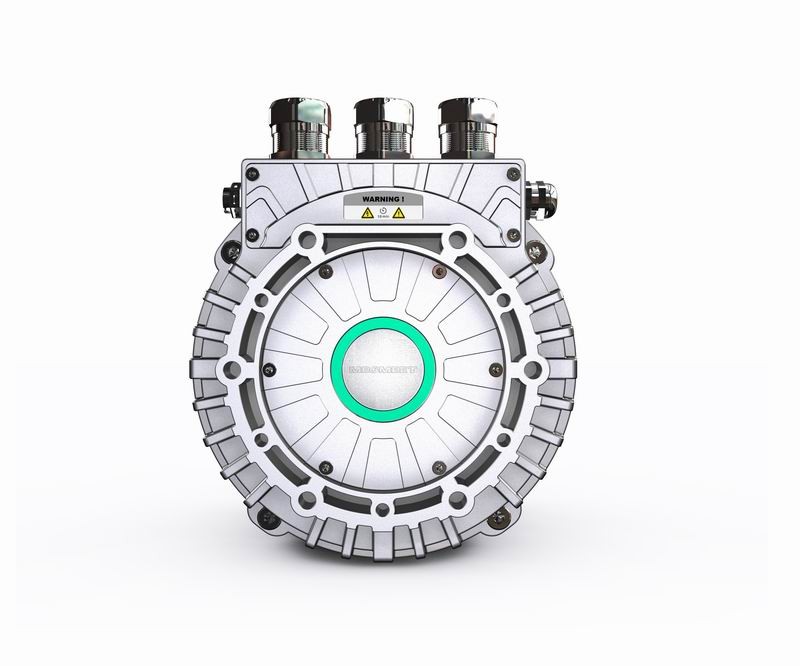

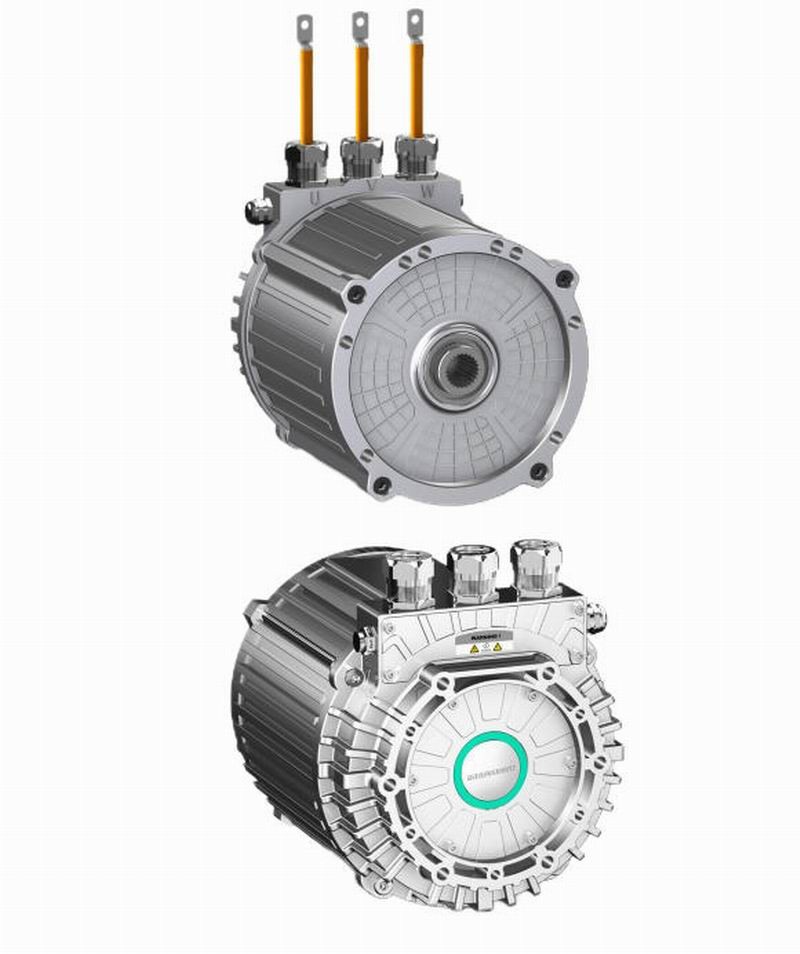

180 platform motor

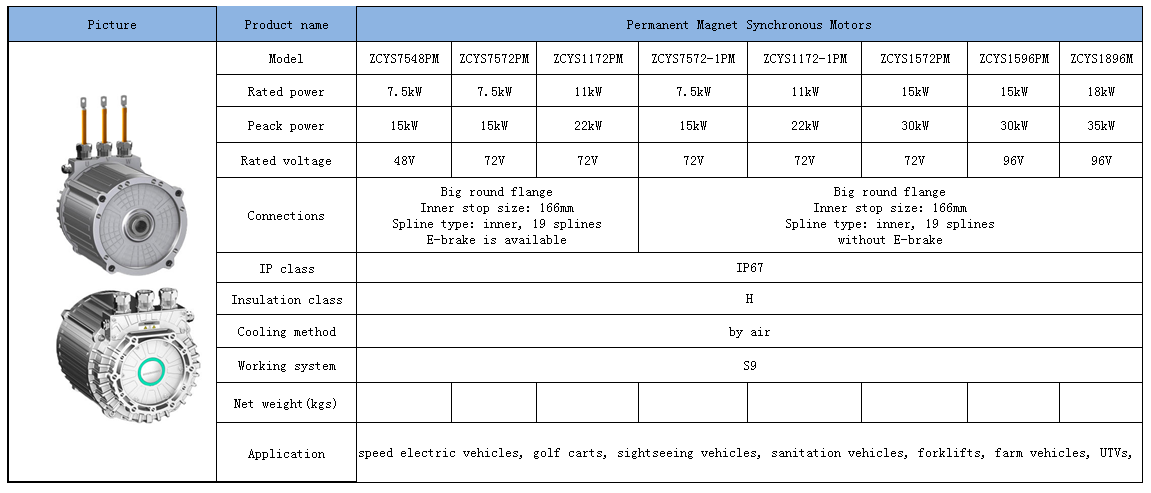

Model: ZCYS7548PM, ZCYS7572PM, ZCYS1172PM, ZCYS7572-1PM, ZCYS1172-1PM, ZCYS1572PM, ZCYS1596PM, ZCYS1896M
Rated power: 7.5kW 7.5kW 11kW 7.5kW 11kW 15kW 15kW 18kW
Peack power: 15kW 15kW 22kW 15kW 22kW 30kW 30kW 35kW
Rated voltage: 48V 72V 72V 72V 72V 72V 96V 96V
Connections: Big round flange; Inner stop size: 166mm; Spline type: inner, 19 splines; With/Without E-brake
IP class: IP67
Insulation class: H
Cooling method: by air
Working system: S9
Application: low-speed electric vehicles, golf carts, sightseeing vehicles, sanitation vehicles, forklifts, farm vehicles, UTVs, etc.
